• Auto-Sensitivity Feature automatically sets

the unit to it's optimum sensitivity without

potentiometers

• User Specified Programmed auto-sensitivity

range

• Voltages : 12VDC,  24VDC,  110VAC,  220VAC

• 1, 2 or 3 SPDT relays for multiple on/off

point switrches or filling/emptying operations

(consult Lumenite® with your application)

SENSITIVITY :

LASC - Auto-Sensitivity / User Specified Range

MOUNTING TYPE :

DM - din-rail mount

RELAYS :

201 - one relay for 1 single on/off switch or 1 filling / emptying operation

401 - two relays for 2 single on / off switches OR 1 filling / emptying operation with

         1 on / off switch OR 2 filling / emptying operations in separate tanks

601 - three relays for 3 single on / off switches OR 1 filling / emptying operation with

         2 on / off switches OR 3 filling / emptying operations in the same or separate tanks

VOLTAGE :

12 = 12VDC,    24 = 24VDC,    1 - 110VAC,    2 - 220VAC

HOUSING (optional) :

PWP - Nema 4x polycarbonate waterproof,  corrosion resistant enclosure

SWP - Nema 4X 304 s.s. waterproof,  corrosion resistant enclosure

SAMPLE PART # : LASC - DM - 2011 - PWP

Description : microprocessor based conductivity level control,  din-rail mounting,

110VAC line voltage,   polycarbonate waterproof nema 4x enclosure,  1 SPDT

relay (contacts 10Amps @ 110VaC),  dry contacts

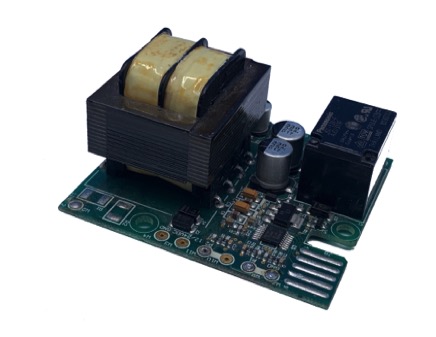

Shown :

LASC-DM-201
